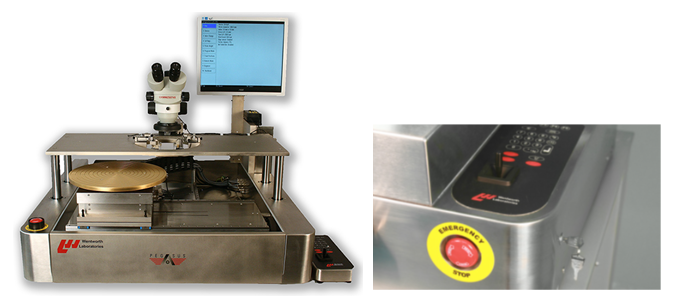

| PEGASUS™ S200 & S300

home Product Hardware (H/W) Probe Station Wentworth(프로브 스테이션) PEGASUS™ S200 & S300

| 개요

  • • 세미오토매틱 타입의 양산용 프로브 스테이션 : 200 mm 와 300 mm 웨이퍼용

| 주요 기능

  • • Fast probing up to 100 mm/sec
  • • TTL, Ethernet (10BaseT), RS232 and IEEE 488 optional
  • • Easy integration of cameras and other external test equipment
  • • Remote and integral keyboard for easy control
  • • Active wafer profiling using Pegasus™ probes
  • • Semi-automatic two-point wafer alignment to reduce set-up time
  • • Additional axes available for auxiliary control of probing accessories
  • • Motorized platform for setting upper and lower safety limits for probe cards

| 응용 분야

  • • The Pegasus™ S series wafer probers are specifically designed for production probing and are particularly effective for low volume probing, design verification, failure analysis and for probing packaged components.
  • • The S200 is especially recommended for probing semiconductors, light-emitting diode (LED) and microelectromechanical systems (MEMS).
