| Switching Solutions

  • 고속 디지털 신호 분석 전문업체인 독일 Bitifeye사의 제품으로서 여러 종류의 고속 디지털 신호를 쉽고 빠르게 자동측정 및 인증해 줍니다.(주)제이스는 Bitifeye사의 공식 국내 파트너로서 제품 공급과 기술 지원을 제공하고 있습니다.

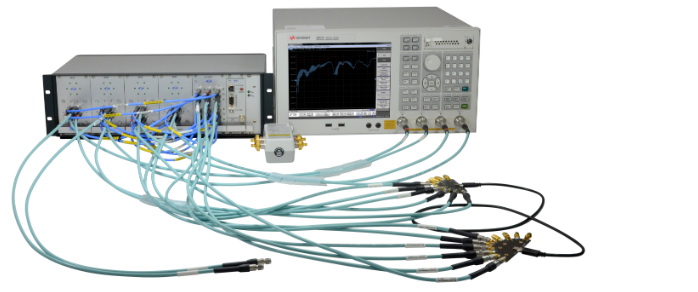

  • The BitifEye 2100 series is a modular and scalable switching system. Five slots can be equipped with 2:1, 4:1 or 6:1 switch modules, with a bandwidth from DC up to 26.5 GHz.
  • We provide several application specific configurations, which are also connected to our ValiFrame / N5990A test automation software. Apart from this is also possible to customize your own switch system, and control it either manually or using your own control software.

| Application Specific Switch Systems

  • In order to use them together with our Test Automation Software ValiFrame / N5990A for receiver and cable tests you need to add BIT-2001-0002-0 “Switch System and DSGA Platform Support”

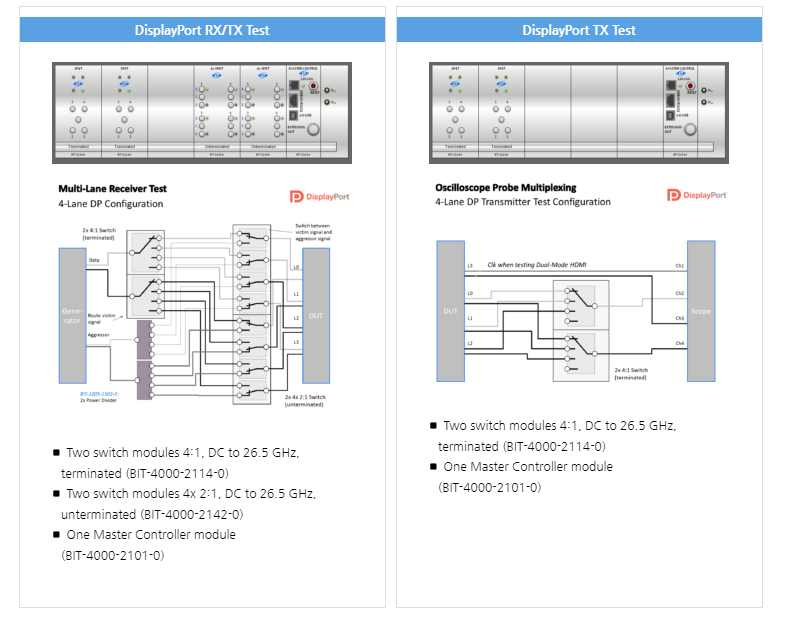

  • • Display Port

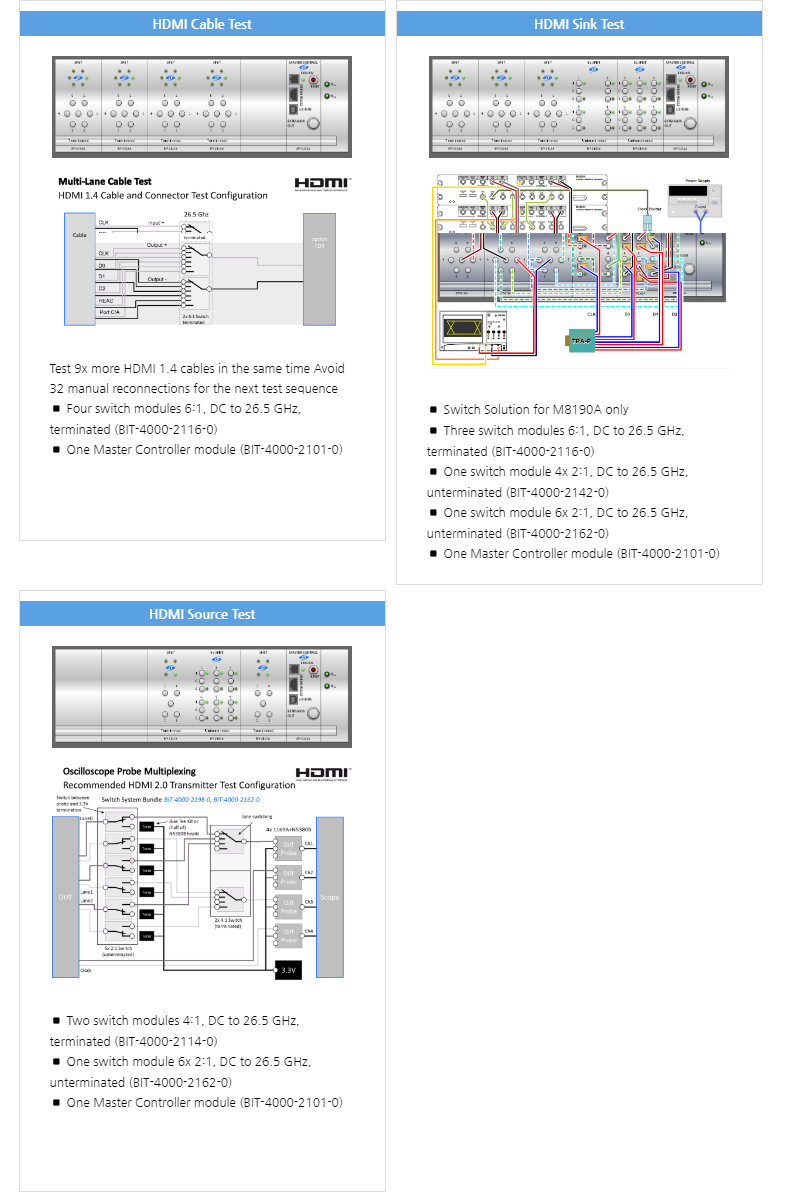

  • • HDMI

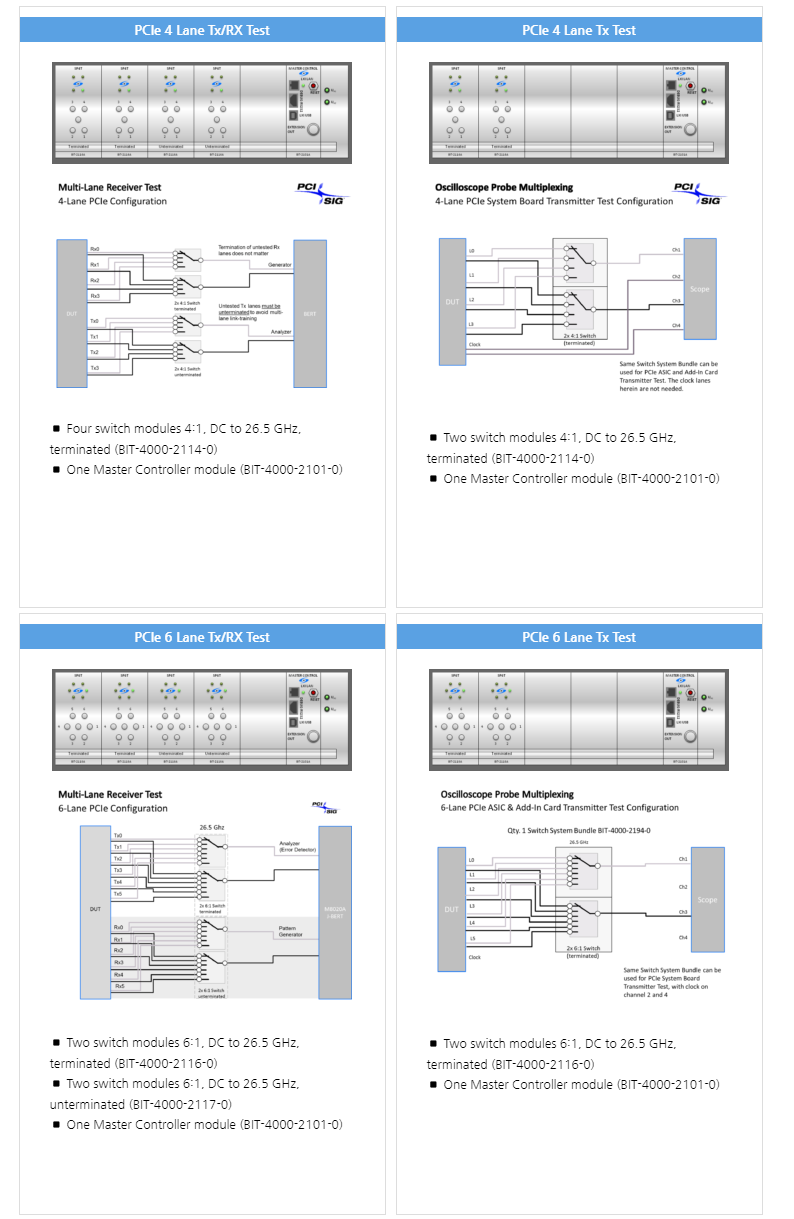

  • • PCIe

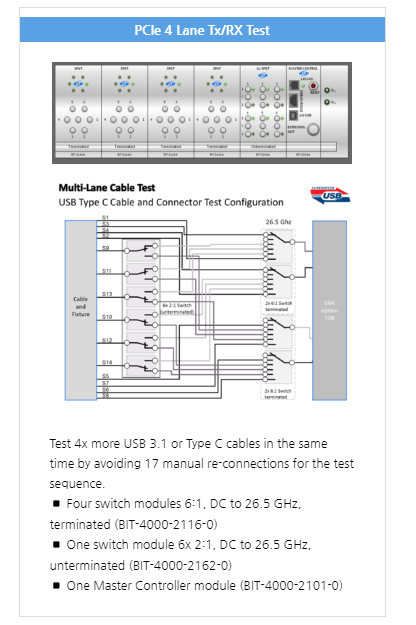

  • • USB Type-C/3.1Gen2 Cabletest

| Customization of Switch Systems

  • ‘To fullfill individual purposes in which a switch system is usefull, you can also configure your own system. Below you find the different modules. Alternatively you can use our online configuration tool

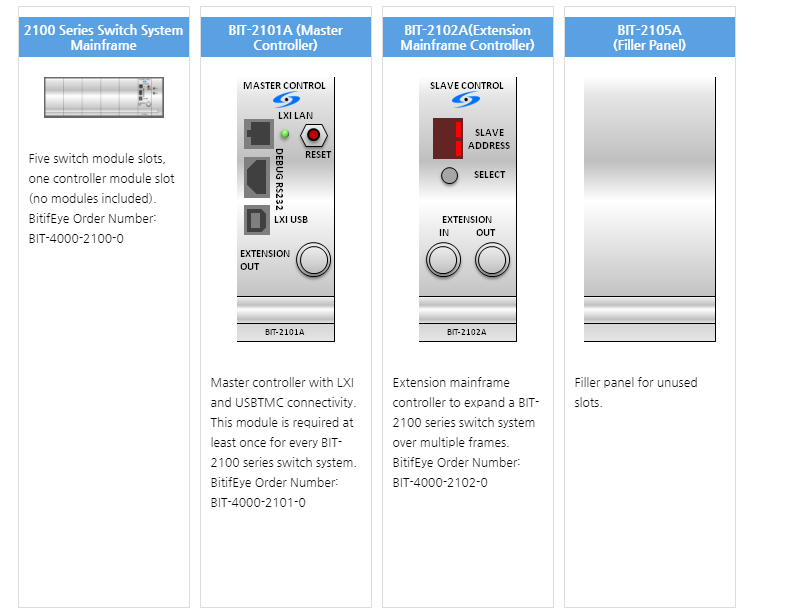

  • • Basic Options

  • • 2:1 Module Options

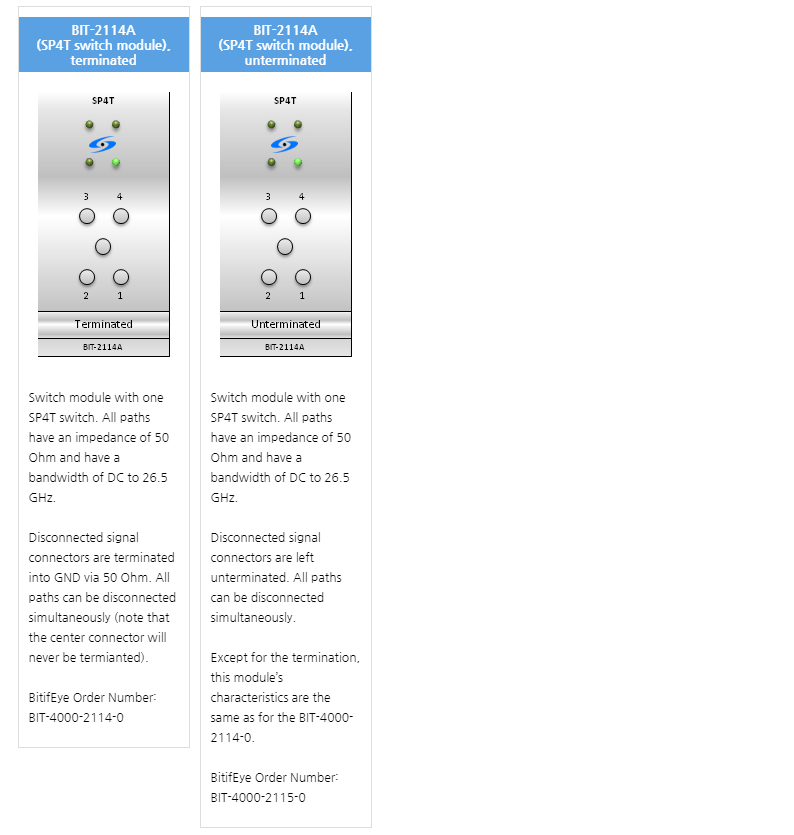

  • • 4:1 Module Options

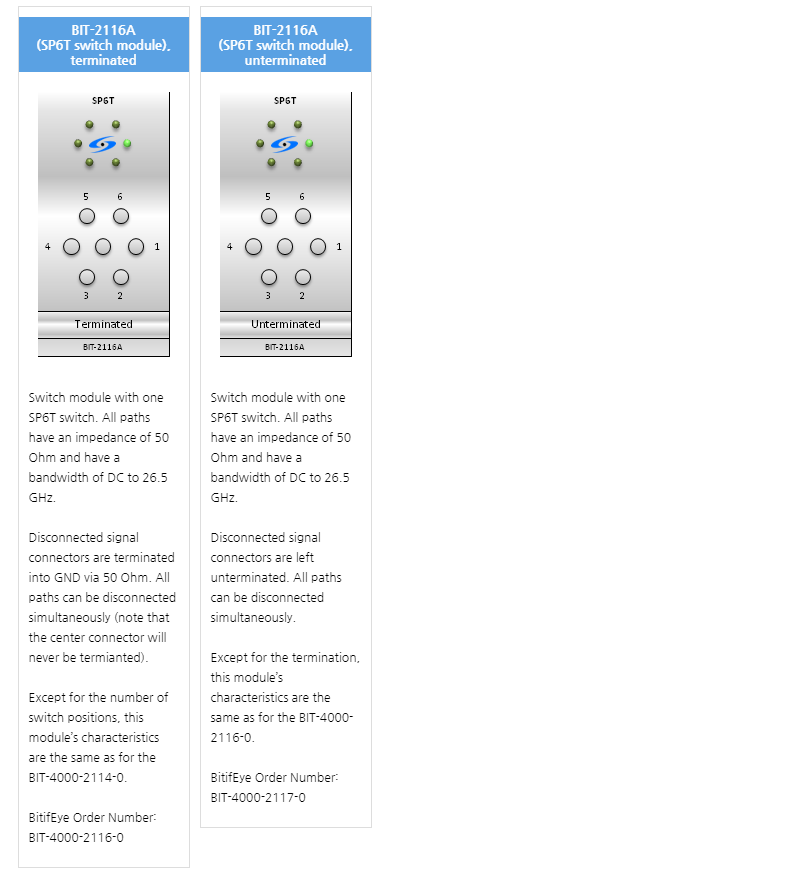

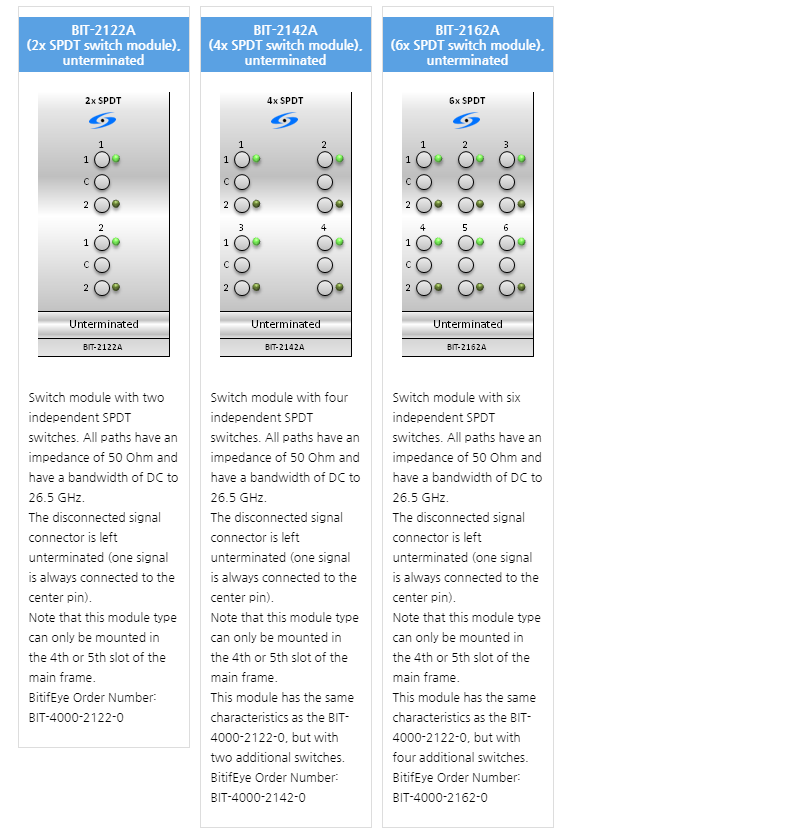

  • • 6:1 Module Options

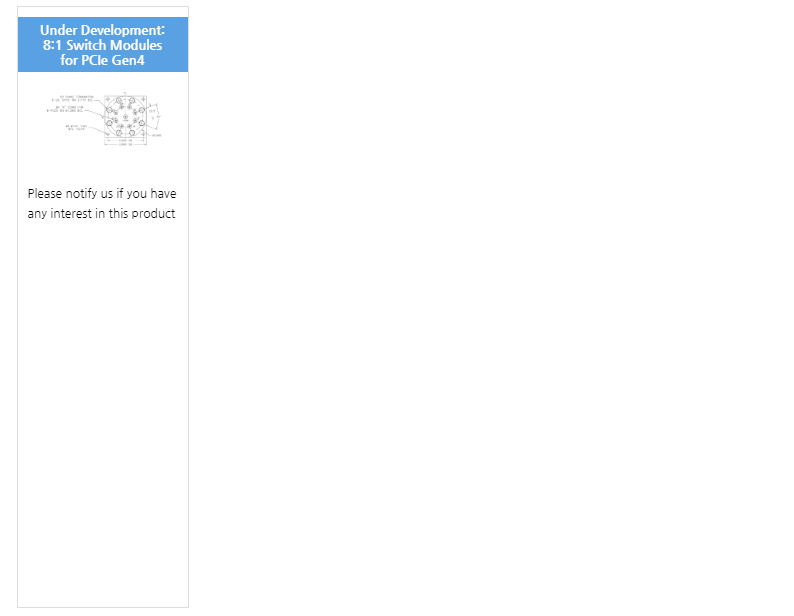

  • • 8:1 Module Options
